03 — ADDITIVE MANUFACTURING

SV06 Printer Systems Integration

Converted a Sovol SV06 from stock Marlin firmware into a Klipper-based prototyping system hosted on a Raspberry Pi 400.

Overview

Upgraded my Sovol SV06 from its old Marlin firmware to a new Klipper-based system hosted on a Raspberry Pi 400 and set up a browser-based control interface using Mainsail and Moonraker for remote printer management.

Impact

Previously, the printer only accepted SD cards for print files, but with a network-controlled printer, prints can be started, calibrated, and viewed from anywhere in the world,

PHOTO DOCUMENTATION

Build and configuration

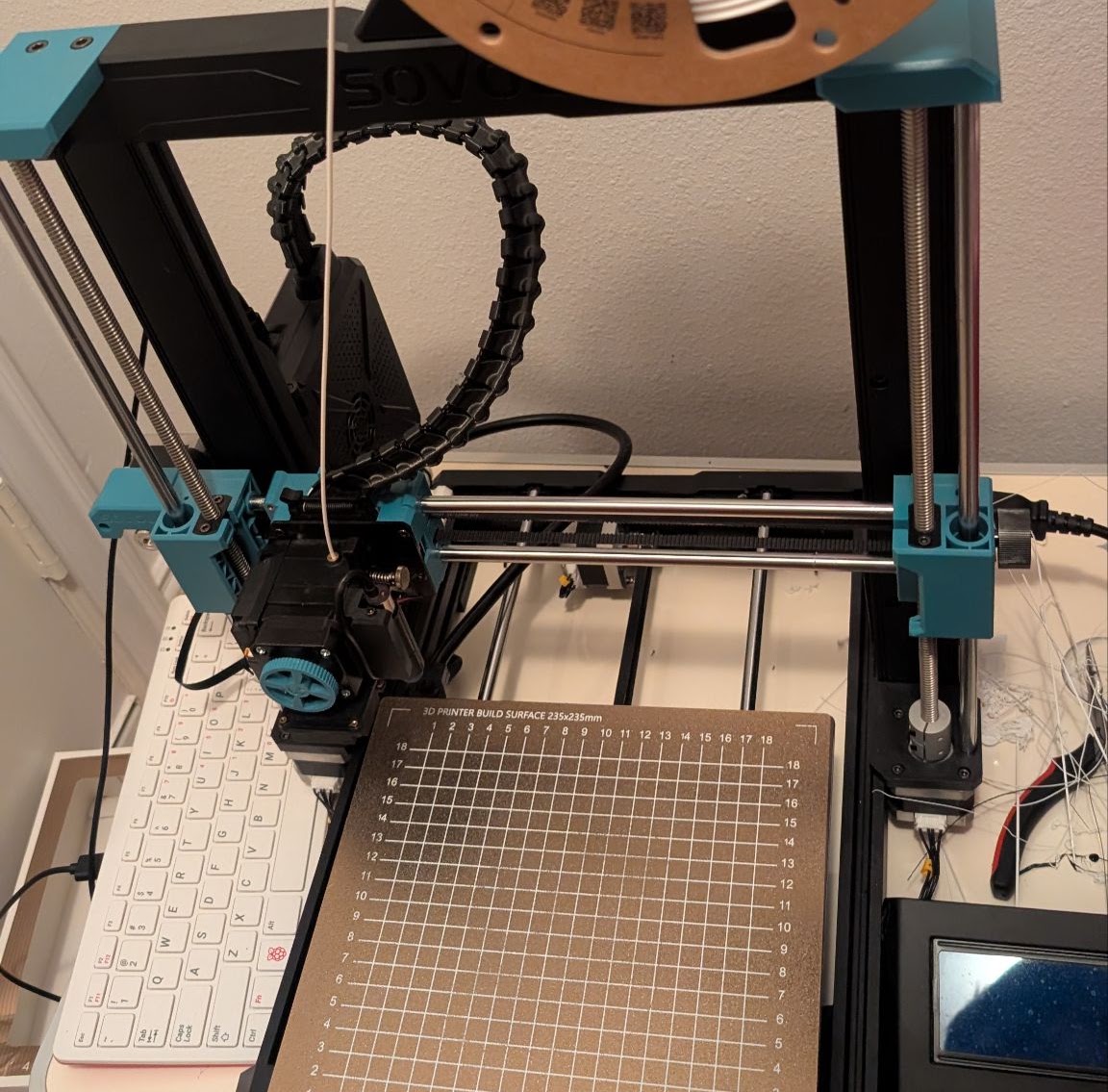

Sovol SV06 printer during systems integration
SV06 hardware and printer setup.

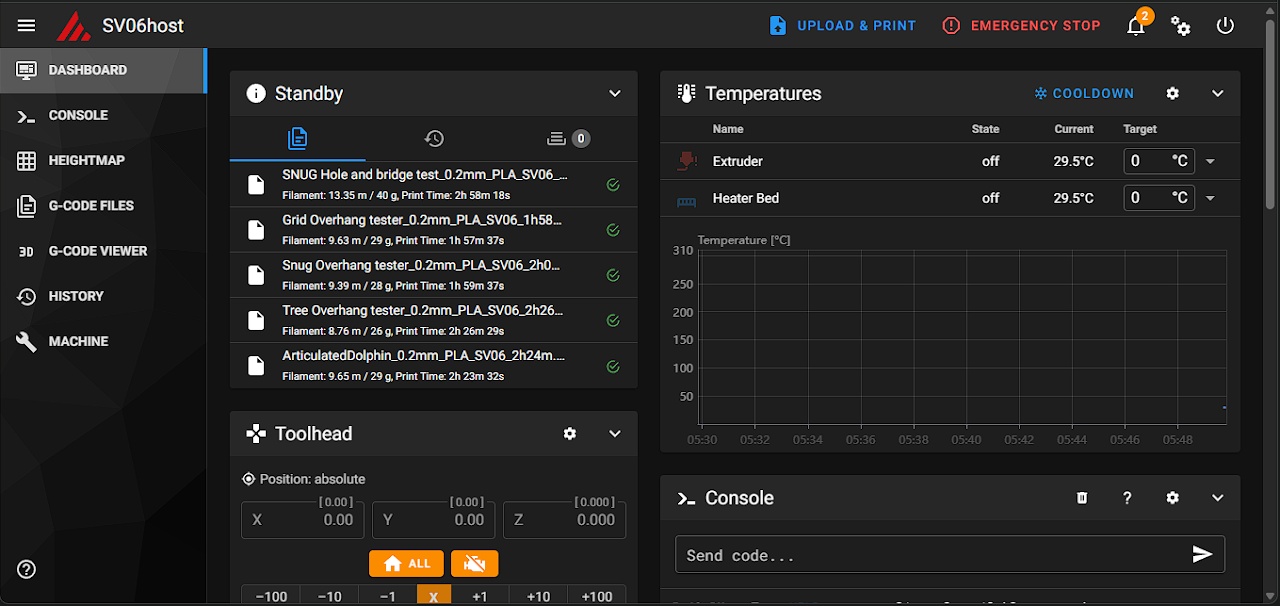

Mainsail dashboard used to manage the SV06 printer
Mainsail interface for printer control and monitoring.

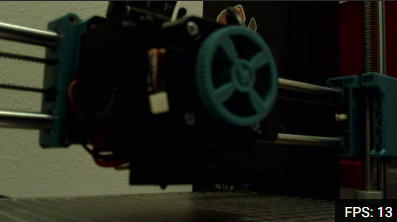

Live video feed from the modified Sovol SV06 printer
Live video feed example from the modified SV06 printer.

VIDEO

Printer operation

Remote printer calibration

TECHNICAL NOTES

System components

  • Sovol SV06 FDM 3D printer
  • Raspberry Pi 400 as the Klipper host
  • Klipper firmware and printer configuration
  • Mainsail web interface and Moonraker API service
  • Custom tuning and configuration work, including StealthChop-related settings
